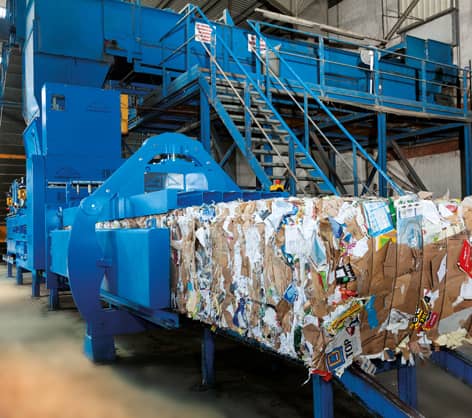

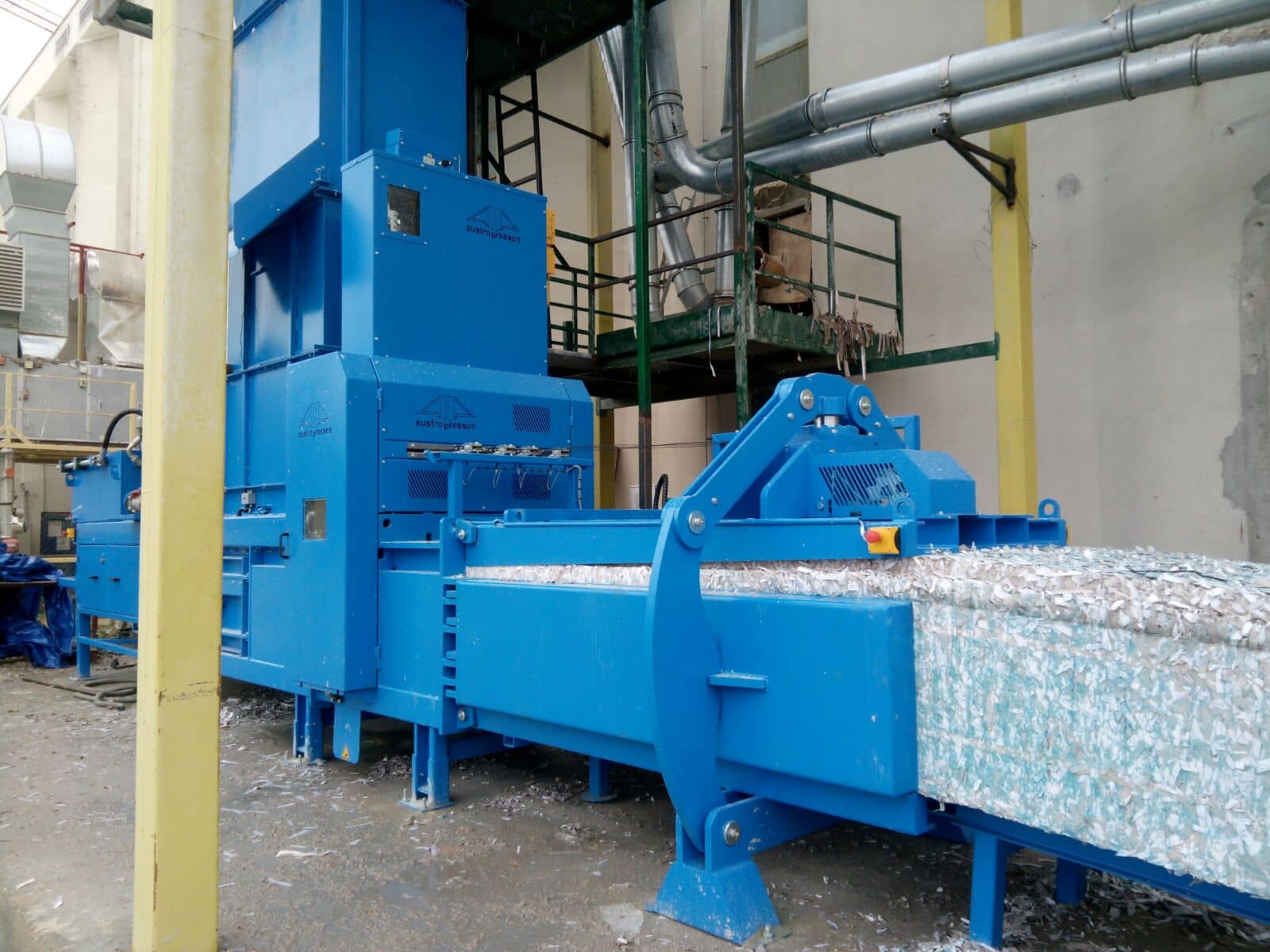

Channel Baling Press APK-ES

Brochure (PDF)

Energy efficient top performance – our models for experts

With these newly designed models even experienced users of baling presses are convinced by the high quality and reliability of our industrial balers. Highly compacted bales for an optimal truck loading, high throughput and maximum energy efficiency are the best proof for the excellent efficiency of these channel balers. These continuous, reliable machines in combination with an optimal feeding attachment together provide the modern and future-oriented waste handling  for every logistic requirement.

The optimal designed hydraulic blocks, the patented cutting system and the reliable binding unit DRILLFIX together guarantee maximum throughput and minimum energy consumption.

APK-ES range at a glance:

  • Pressure force: 600-1480 kN

  • Theoretic capacity: 300-850 m³/h

  • Bale formats: 1100×750 mm + 1100x1100 mm

  • Bale weights: 450-1800 kg

  • Pressure plate channel baling press Austropressen

    Pressure plate can take high pressure

  • Austropresssen channel baler APK

    Patented cutting system minimizes material jams

  • Austropressen channel baling press APK industrial baler

    Patented cutting system with free press device

  • Austropressen channel baling press APK

    Wire-saving binding unit DRILLFIX

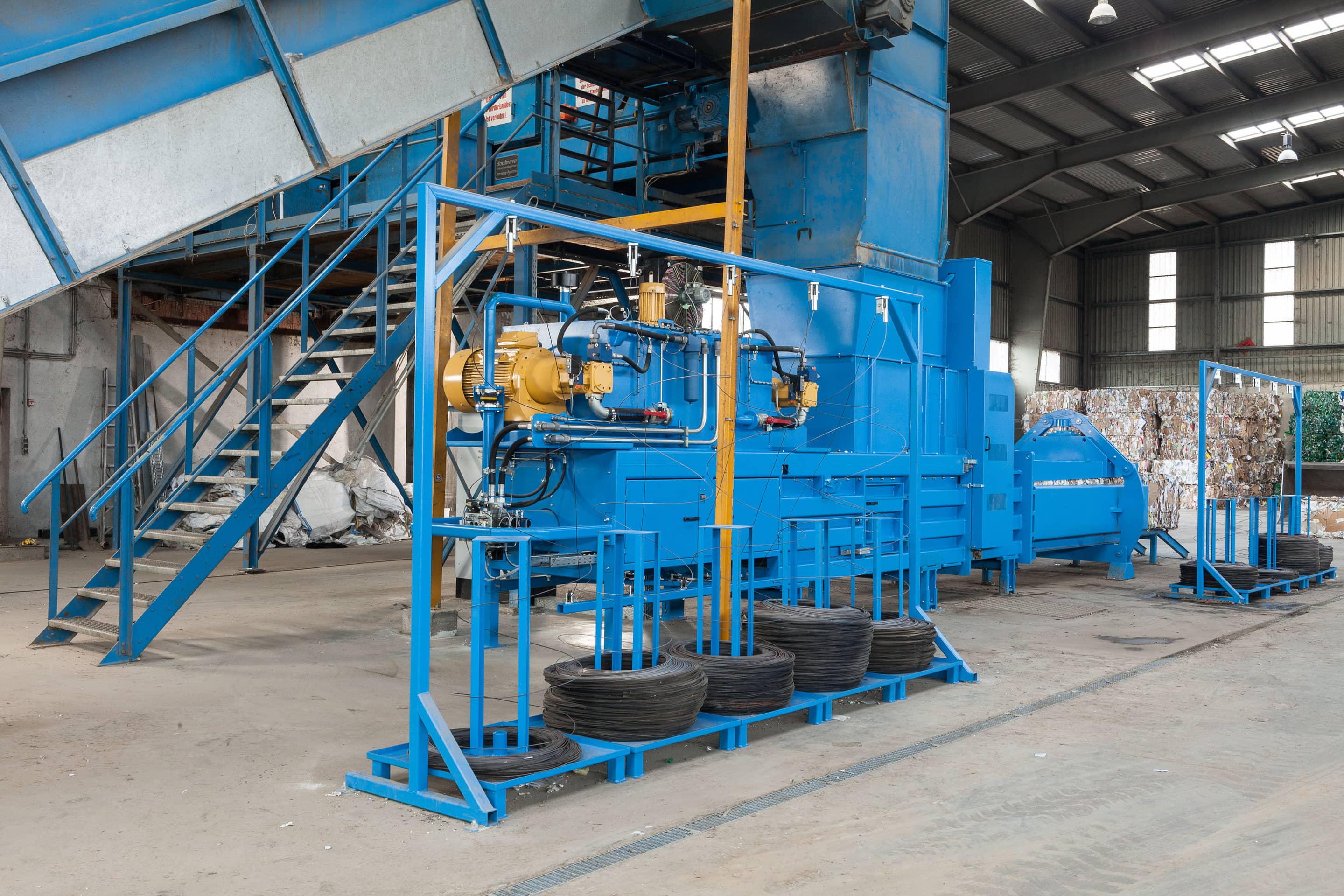

  • Austropressen channel baling press APK hydraulics pump

    Hydraulic equipment with axial piston pump

  • Austropressen channel baling press APK

    Key transfer system for maximum safety

  • Channel Baler APK-ES

    Automatic pressure-controlled channel

  • Austropressen channel baling press APK

    SPS control with touch display

  • Austropressen channel baling press APK

    Sliding shields for binding unit

NaN/undefined

  • Big roller guides of the press plate allow to take high pressure

  • Changeable bottom parts are made of wear resistant HARDOX material

  • Patented cutting unit and knives and automatic rectification system (free-press device) guarantee a continuous and failure-free operation without jamming

  • Wire-saving binding system DRILLFIX by Austropressen

  • Hydraulic unit is equipped with a self-regulating low noise axial pump including automatic switch off for minimum energy consumption despite high throughput

  • Inspection doors on both sides and key transfer system guarantee maximum operator safety and quick and safe maintenance

  • Automatic pressure-controlled channel adjustment on three sides guarantees high bale weights

  • For frequent material changes and optimal results of compacting different material, up to 10 pressure levels can be programmed and regulated via display

  • Big range of additional equipment available (data monitoring, feeding hopper, conveyor systems, etc.)

ModelleES-60 | ES-70 | ES-90 | ES-103 | ES-105 | ES-135 | ES-150
Press load600- 1480 kN
Specific press load75- 129 N/cm²
Driver power45- 3x55 kW
Theoretical throughput300- 850 m³/h
Filling hatch (LxB)1500x1020- 2000x1020 mm
Bale format (LxB)1100x750- 1100x1100 mm
Bale lengthmax. 2000 mm
Bale weight450- 1800 kg
Weight18500- 44000 kg

All models and full technical data:

Brochure (PDF)

Channel baling presses of the range APK-ES are successfully used in the packaging production, central storage facilities, waste disposal companies, recycling and sorting plants.

The balers are suitable for fragments from cardboard and plastics production, PET-bottles, drinking cans, film, blown containers, agricultural flies and films, hard plastics, residual waste, EBS, and much more.

APK-ES at our customers

Automatic baler APK-ES 135 used by Energie AG ensures efficient waste management

Automatic baler APK-ES 135 used by Energie AG ensures efficient waste management

Energie AG Umwelt Service offers sustainable waste disposal services throughout Austria. The processing of 1,000 tonnes of material per month at the Ötztal site is optimally fulfilled by the fully automatic Austropressen APK-ES135 channel baling press.

Show Successstory

Concentrated solutions for smart waste management at many VEOLIA locations

Concentrated solutions for smart waste management at many VEOLIA locations

As a major waste management company, Veolia operates its own sorting plants in Germany and manages the waste of major retail chains such as REWE Group. Austropressen's APK channel balers are successfully used at many locations.

Show Successstory

Channel baling press Austropressen APK-ES105 for waste disposal expert FCC

Channel baling press Austropressen APK-ES105 for waste disposal expert FCC

ENTSORGA, a subsidiary of the FCC Group, has been operating a landfill and recycling centre for household and commercial waste in Tainach for the past 30 years. An Austropressen APK-ES105 automatic baler with top-of-the-range equipment is now also in use at the site.

Show Successstory

Further products

Long-lasting quality from Austria

50

Years of designing and manufacturing high quality baling presses in Austria. This valid experience ensures reliability, durability and maximum efficiency of all Austropressen products.
