Horizontal Baling Press KNL 120HD/140HD
Large loading aperture – universal application
KNL is a versatile horizontal baling press equipped with a large loading aperture to handle even bulky material easily. The baler is available in different sizes and easily compacts paper, cardboard, plastic film, styrofoam, PET bottles, plastic and aluminium containers, paint pails and metal barrels up to 60 liter. The hydraulically secured ejection door maximizes operational safety.
The main benefits:
Effortlessly compacts bulky material
Maximum ease of operation
Wide range of additional equipment
Categories
Horizontal Balers
Feeding of KNL
Operation via SPS control with display
Binding tapes KNL

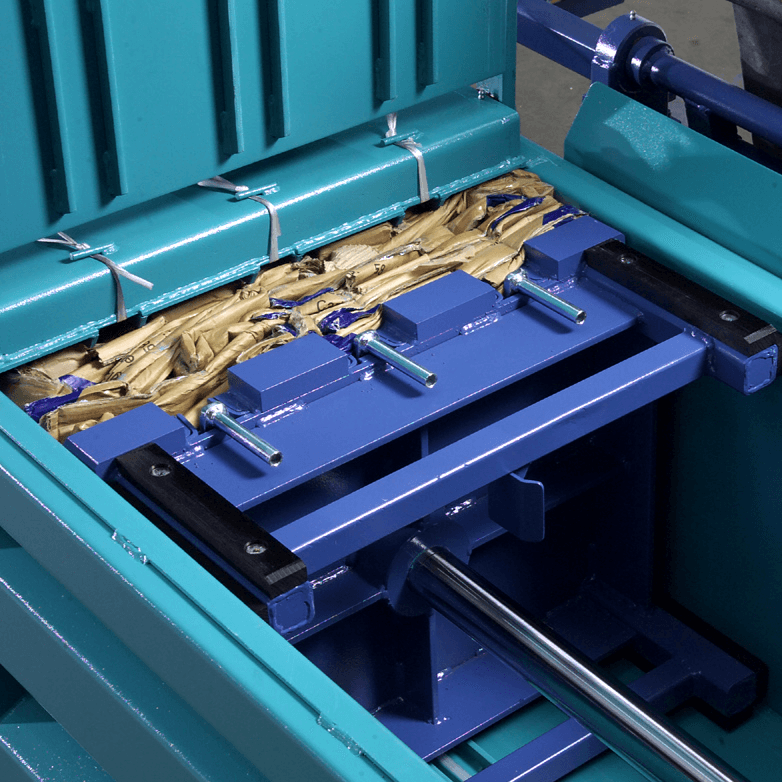

Pressure plate KNL
Hydraulically secured counter door
Hydraulically secured counter door
NaN/undefined
Simple operation thanks to digital display in the respective language
Minimum maintenance effort
Bale binding system is easy to handle (3x with plastic strapping tape)
Dense and stackable bales up to 200 kg
Claws inside the press chamber retain expanding material (e.g. plastic film) from returning back up – ensuring higher bale weights

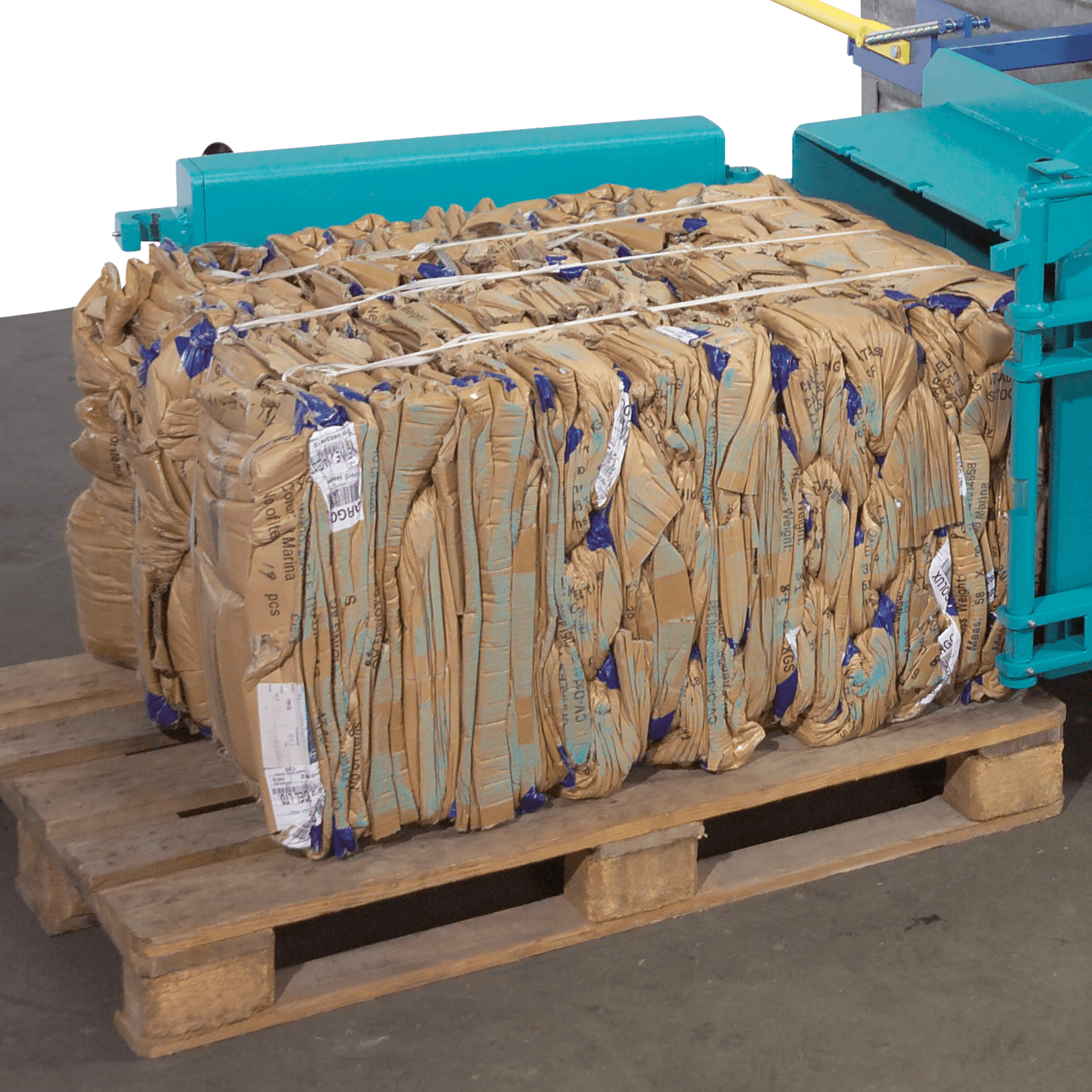

The bale is ejected automatically onto a pallet
Highest comfort and maximum safety due to the hydraulic ejection door (for heavily expansive materials)
High durability and reliability based on our quality standards
- ModelleKNL 120 HD | KNL 140 HD
- Press load120- 140 kN
- Driver power4- 5,5 kW
- Moudling cycle35- 40 sec
- Compression box dimension (LxBxH)max. 800x600x2000 mm
- Filling hatch (LxB)1000x800 mm
- Filling height820 mm
- Bale format (LxB)max. 800x600x1200 mm
- Bale weight120- 200 kg
- Dimensions (LxBxH)max. 4700x1170x1040 (2105) mm
- Weightmax. 1370 kg
All models and full technical data:
Easily compacts paper, cardboard, plastic film, styrofoam, PET bottles, plastic and aluminium containers, paint pails and metal barrels up to 60 liter.
