Horizontal Baling Press KNL 100
Large loading aperture – universal application
KNL is a versatile horizontal baling press equipped with a large loading aperture to handle even bulky material easily. Maximum ease of operation thanks to digital display, simple binding system and automatic bale ejection system. The machine is available in different sizes and easily compacts paper, cardboard, plastic film, styrofoam, PET bottles, plastic and aluminium containers, paint pails and metal barrels up to 60 liter.
Optional equipment like tipping device and bagging attachment ensure an optimal internal logistics.
The main benefits:
Universal application, clean solution
Easy to handle
Minimum maintenance effort
Categories
Horizontal Balers
Feeding of KNL
Operation via SPS control with display
Pressure plate KNL
Binding tapes KNL

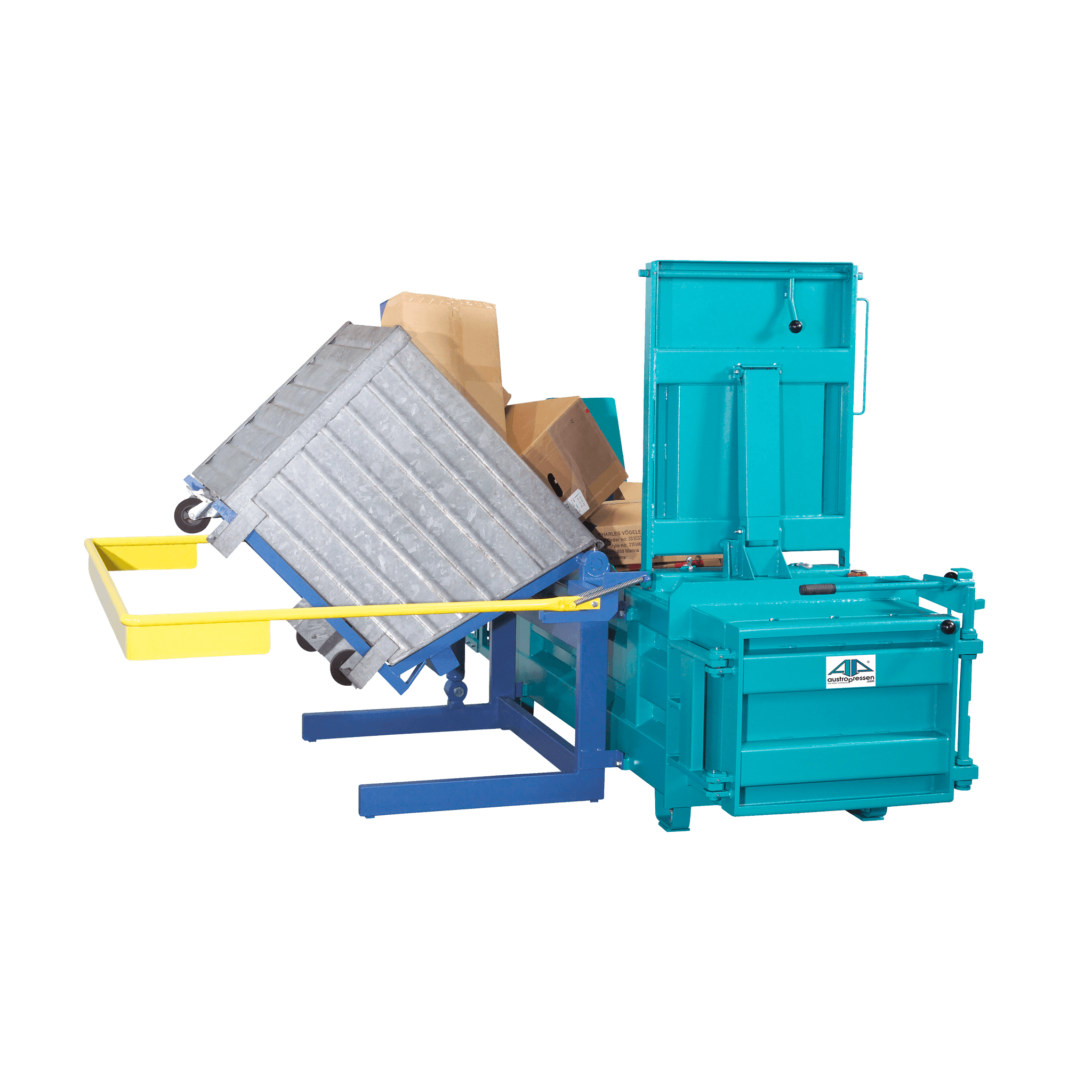

Tipping device with safety bar for KNL
Bagging attachment KNL 100

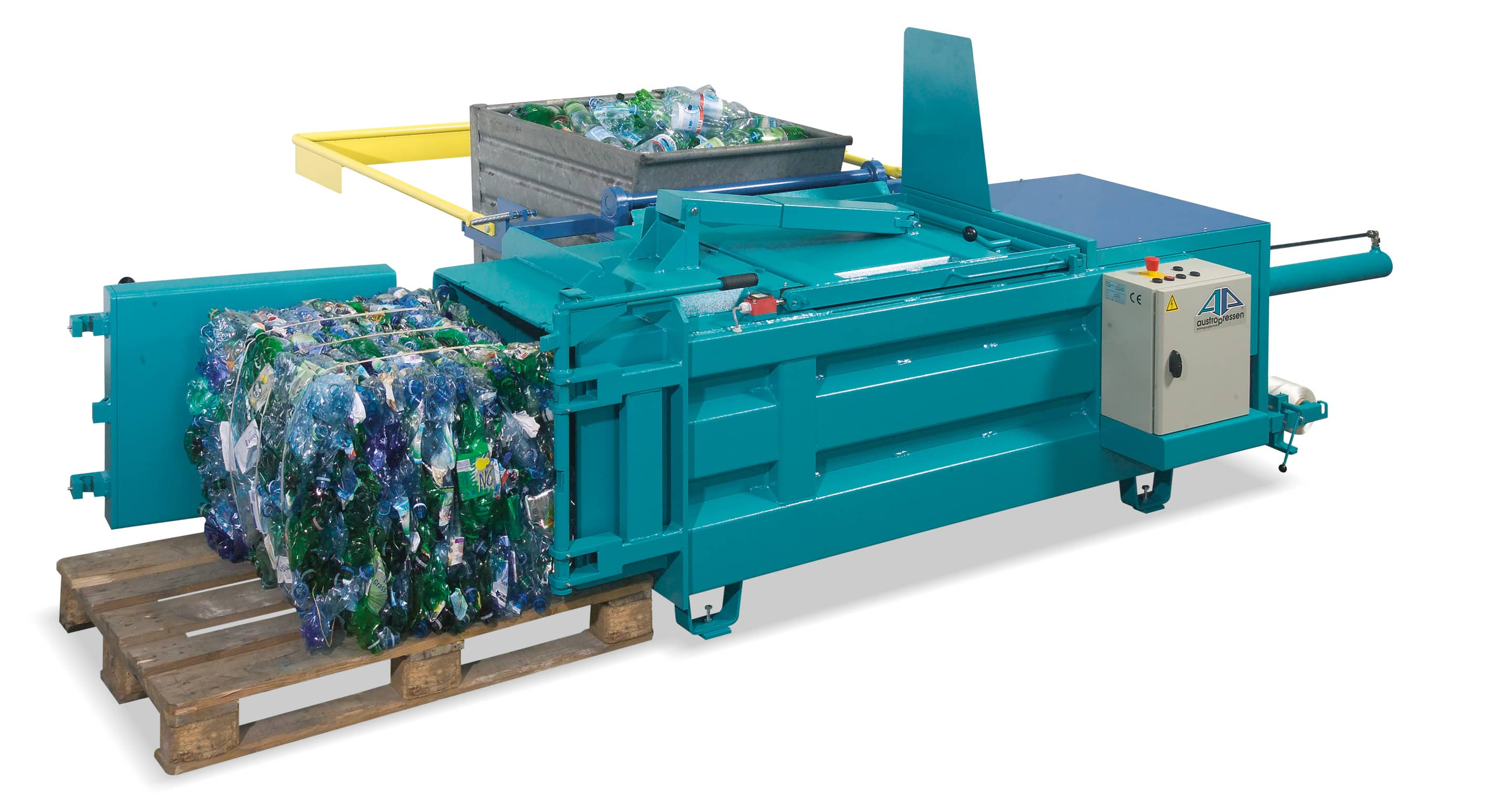

Bagging attachment PET bottles KNL 100
Pressure plate KNL
NaN/undefined
Simple operation thanks to digital display in the respective language
Minimum maintenance effort
Bale binding system is easy to handle (3x with plastic strapping tape)
Dense and stackable bales up to 100 kg
Claws inside the press chamber retain expanding material (e.g. plastic film) from returning back up – ensuring higher bale weights

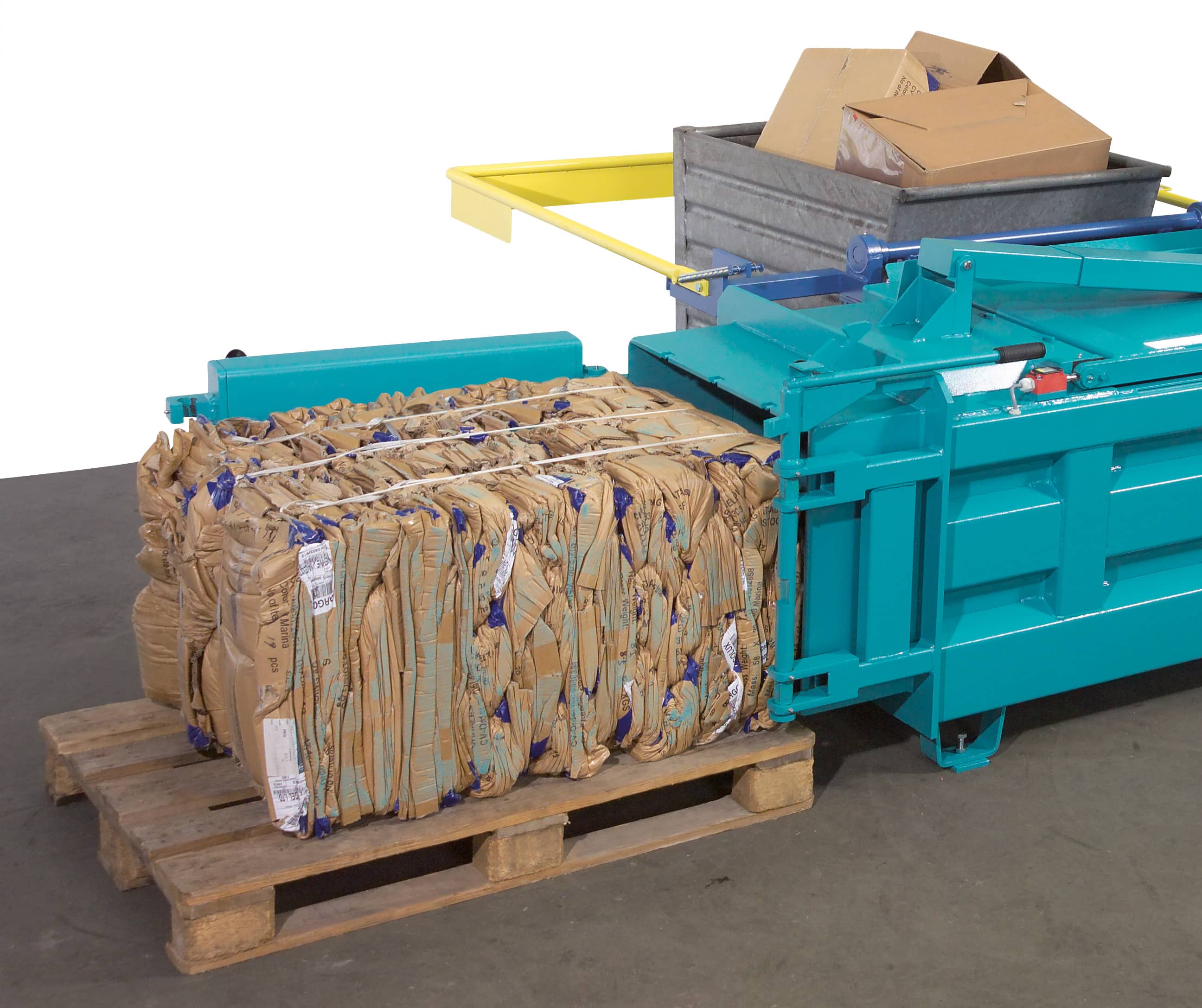

The bale is ejected automatically onto a pallet
Easy handling with tipping device for movable containers
Bagging attachment ensures clean storage and transport of small materials
High durability and reliability based on our quality standards
- ModelleKNL 100
- Press load100 kN
- Driver power4 kW
- Moudling cycle25 sec
- Compression box dimension (LxBxH)700x550x1700 mm
- Filling hatch (LxB)1000x700 mm
- Filling height750 mm
- Bale format (LxB)max. 700x550x1200 mm
- Bale weight80- 150 kg
- Dimensions (LxBxH)3840x1075x1000 (1870) mm
- Weight1050 kg
All models and full technical data:
Easily compacts paper, cardboard, plastic film, styrofoam, PET bottles, plastic and aluminium containers, paint pails and metal barrels up to 60 liter.
Further products
Horizontal Baling PressAP 25
These professional balers for universal application easily compact various materials to bales up to 300 kg.
- 250 kN
- 200- 300 kg
- 100x750x1200 mm
Semi-automatic Channel BalerAP-SK 20
Energy-efficient, continuously operating baler with patented drive system.
- 80 m³/h
- 210 kN
- 200- 220 kg
- 780x750 mm
Materials
Semi-automatic Channel BalerAP-SK 36
Fast & continuously operating baler ensures modern cost-effective waste handling.
- 120 m³/h
- 360 kN
- 350- 400 kg
- 1000x750 mm
Materials
Semi-automatic Channel BalerAP-SK 12
Continuously operating machines with effiecient cutting system and maximum ease of operation.
- 15 m³/h
- 120 kN
- 100- 120 kg
- 600x500 mm
Materials
Horizontal Baling PressKNL 160HD
Horizontal baler with large loading aperture, hydraulically secured counter door and adjustable bale length.
- 160 kN
- 200- 250 kg
- 800x750x1200 mm
Horizontal Baling PressKNL 120HD/140HD
Horizontal baler equipped with a large loading aperture and a hydraulically secured counter door to handle even bulky material.
- 120- 140 kN
- 120- 200 kg
- max. 800x600x1200 mm
Horizontal Baling PressAP 35/40/42
The concentrated force and the high level of automation generate a remarkable throughput performance and high bale weights..
- 350- 420 kN
- 300- 600 kg
- 800x1000x1400 mm
Long-lasting quality from Austria
Years of designing and manufacturing high quality baling presses in Austria. This valid experience ensures reliability, durability and maximum efficiency of all Austropressen products.
