Semi-automatic Channel Baler AP-SK 36
High operating & energy efficiency
Models of the series AP-SK from Austropressen are semiautomatic channel baling presses. The continuously operating machines in combination with suitable feeding system result in modern cost-effective waste handling. Therefore, the optimal solution for industry and warehouses for compaction of cardboard and plastic film.
Optimally dimensioned hydraulic units in combination with the patented cylinder system ensure efficient energy use and low hydraulic oil consumption.
The main benefits:
Remarkable throughput performance
Troublefree continuous operation
Efficient cutting system
Energy-saving hydraulic equipment

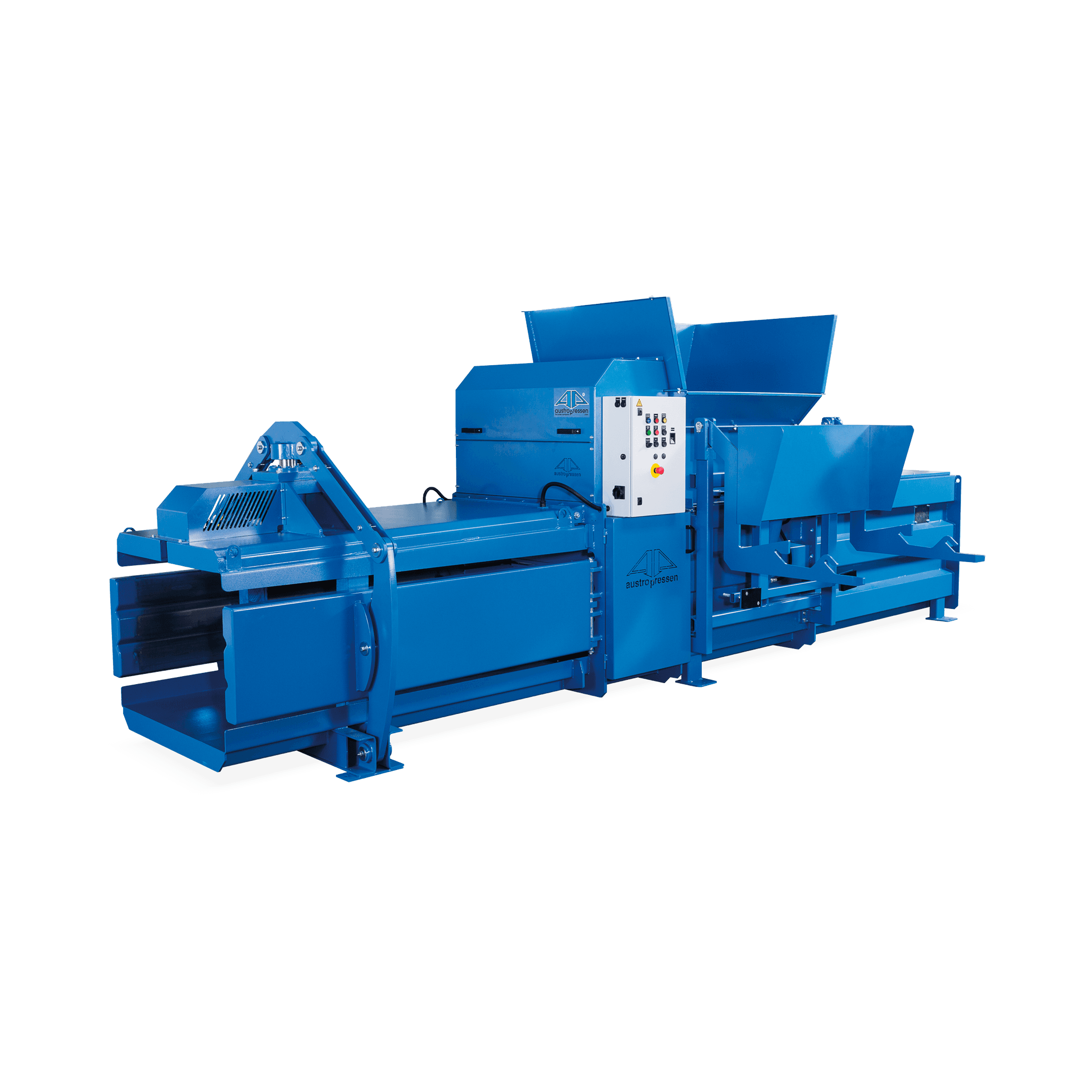

Semi automatic baling press AP-SK
Efficient cutting unit / kives AP-SK
Energy-saving hydraulic equipment AP-SK
Binding system AP-SK
Electronic control unit AP-SK
NaN/undefined
Efficient cutting unit guarantees a continuous feeding and troublefree operation
Maximum ease of operation at the touch of a button
High level of automation and remarkable throughput performance
Patented cylinder and hydraulics system ensure efficient energy use and low hydraulic oil consumption
Bale length is adjustable
Multiple binding with wire or plastic strapping tape
Automatic, pressure-controlled channel regulation on three sides
Additional equipment available - f.ex.. functional tipping device
High durability and reliability based on our Austropressen quality standards
- ModelleAP-SK 36
- Press load360 kN
- Specific press load48 N/cm²
- Driver power11 kW
- Moudling cycle30 sec
- Theoretical throughput120 m³/h
- Filling hatch (LxB)1250x940 mm
- Filling height1400 mm
- Bale format (LxB)1000x750 mm
- Bale length800- 1200 mm
- Bale weight350- 400 kg
- Dimensions (LxBxH)5750x1600x2100 mm
- Weight4700 kg
All models and full technical data:
Optimal solution for industry and warehouses for compaction of cardboard and plastic film.
Further products
Horizontal Baling PressAP 25
These professional balers for universal application easily compact various materials to bales up to 300 kg.
- 250 kN
- 200- 300 kg
- 100x750x1200 mm
Semi-automatic Channel BalerAP-SK 20
Energy-efficient, continuously operating baler with patented drive system.
- 80 m³/h
- 210 kN
- 200- 220 kg
- 780x750 mm
Materials
Channel Baling PressAPK-C
Fast and efficient - our channel baler models for paper & plastics edge trims, punching waste and shred material.
- 170- 330 m³/h
- 320- 420 kN
- 250- 350 kg
- 800x750 mm
Materials
Semi-automatic Channel BalerAP-SK 12
Continuously operating machines with effiecient cutting system and maximum ease of operation.
- 15 m³/h
- 120 kN
- 100- 120 kg
- 600x500 mm
Materials
Channel Baling PressAPK-ES
Energy efficient top performance – our expert models for waste disposal companies, recycling and sorting plants.
- 300- 850 m³/h
- 600- 1480 kN
- 450- 1800 kg
- 1100x750- 1100x1100 mm
Materials
Channel Baling PressAPK-E
Reliable and safe – our all-rounder models for retail warehouses, logistic and dispatch centers and waste indudstry.
- 235- 390 m³/h
- 500- 660 kN
- 400- 550 kg
- 1100x750 mm
Materials
Horizontal Baling PressKNL 160HD
Horizontal baler with large loading aperture, hydraulically secured counter door and adjustable bale length.
- 160 kN
- 200- 250 kg
- 800x750x1200 mm
Horizontal Baling PressKNL 120HD/140HD
Horizontal baler equipped with a large loading aperture and a hydraulically secured counter door to handle even bulky material.
- 120- 140 kN
- 120- 200 kg
- max. 800x600x1200 mm
Channel Baling PressAPK-D
Highly versatile – our all-rounder models for manufacturing companies, retail and mail order businesses.
- 165- 395 m³/h
- 420- 550 kN
- 350- 450 kg
- 1000x750 mm
Materials
Horizontal Baling PressAP 35/40/42
The concentrated force and the high level of automation generate a remarkable throughput performance and high bale weights..
- 350- 420 kN
- 300- 600 kg
- 800x1000x1400 mm
Horizontal Baling PressKNL 100
Versatile horizontal baler equipped with a large loading aperture to handle even bulky material easily.
- 100 kN
- 80- 150 kg
- max. 700x550x1200 mm
Materials
Long-lasting quality from Austria
Years of designing and manufacturing high quality baling presses in Austria. This valid experience ensures reliability, durability and maximum efficiency of all Austropressen products.
