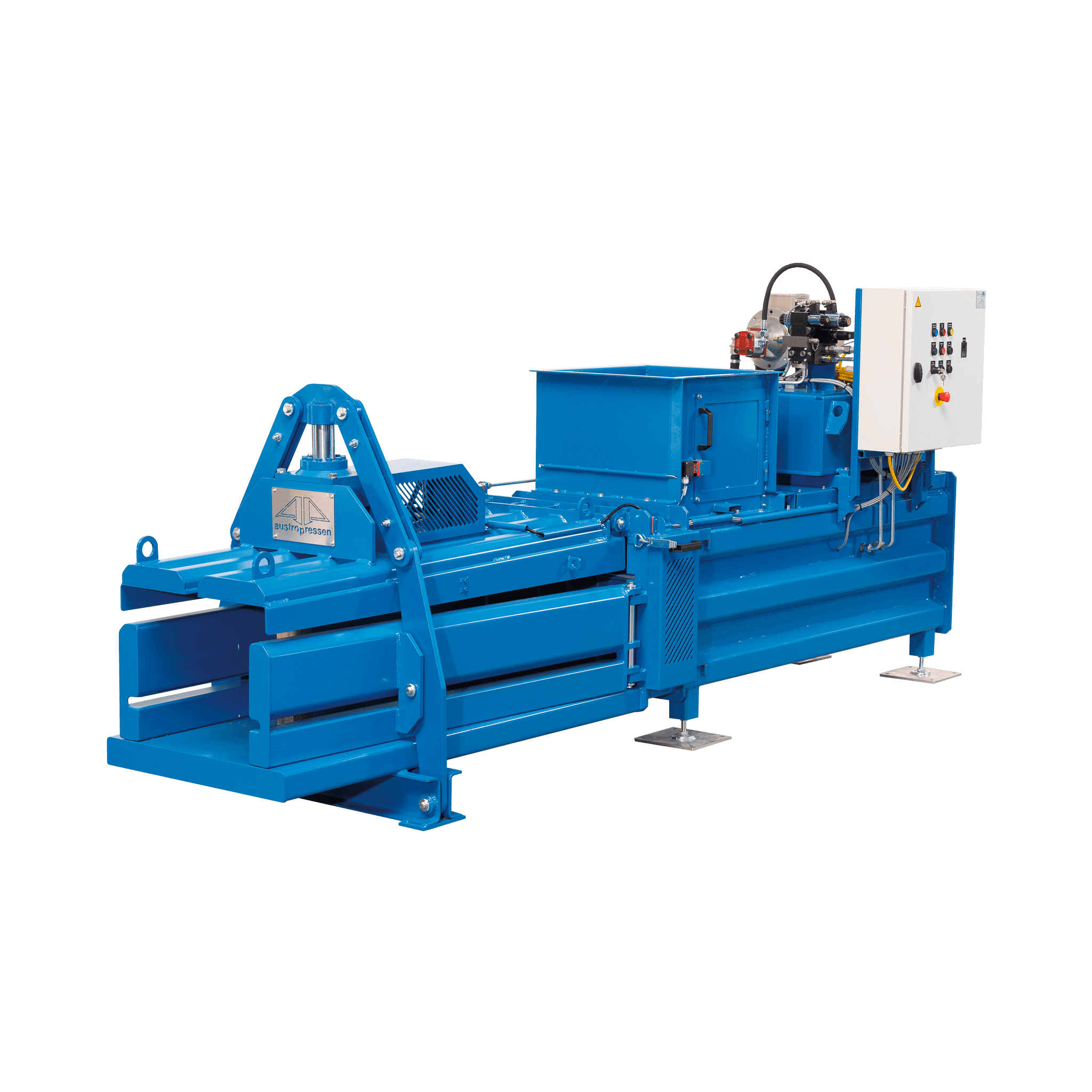

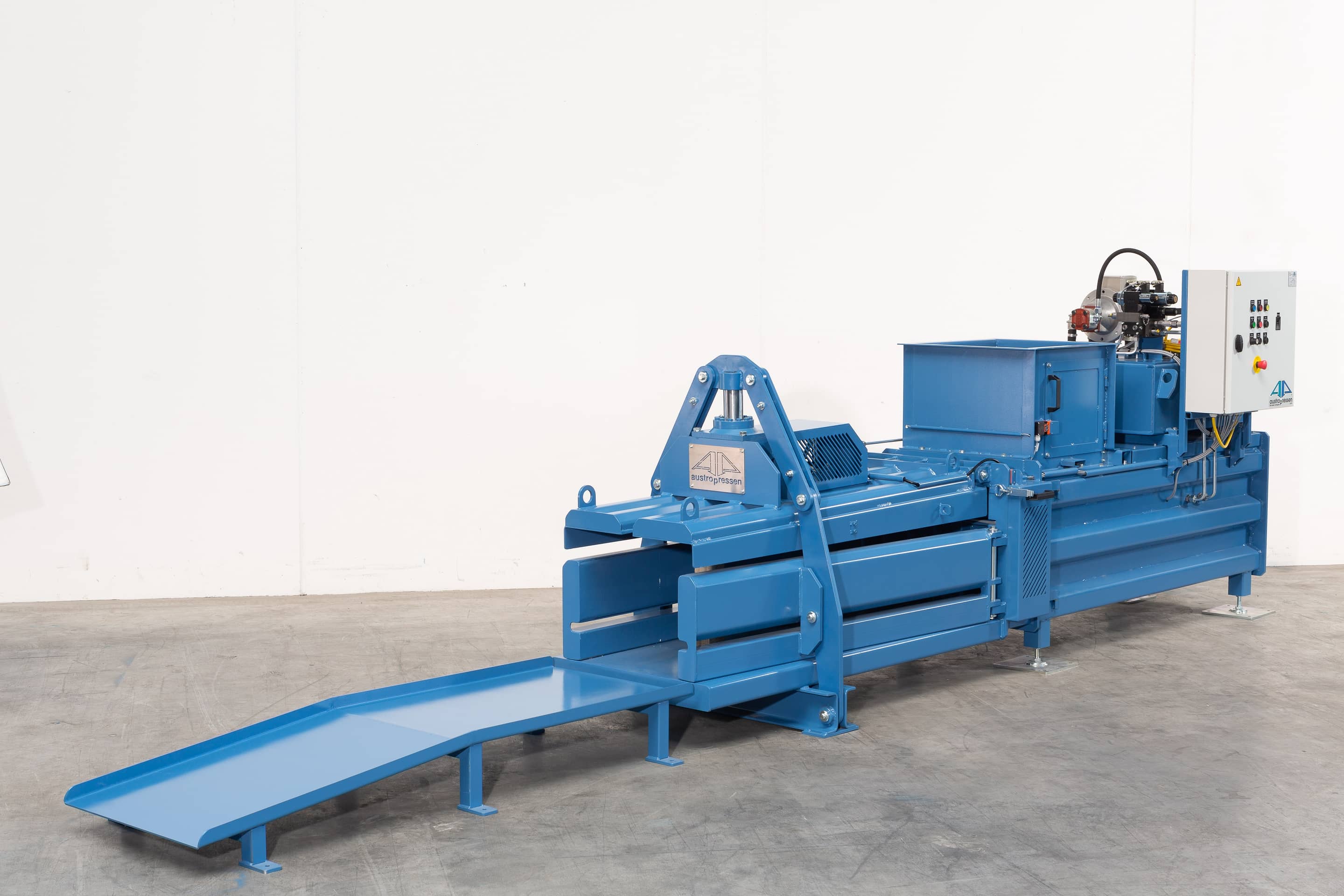

Semi-automatic Channel Baler AP-SK 12
High operating & energy efficiency
Models of the series AP-SK from Austropressen are semiautomatic channel baling presses. The continuously operating machines in combination with suitable feeding system result in modern cost-effective waste handling. Therefore, the optimal solution for industry and warehouses for compaction of cardboard and plastic film.
Optimally dimensioned hydraulic units in combination with the patented cylinder system ensure efficient energy use and low hydraulic oil consumption.
The main benefits:
Remarkable throughput performance
Troublefree continuous operation
Efficient cutting system
Energy-saving hydraulic equipment
Bale wheel AP-SK
Maintenance door binding unit AP-SK
Hydraulic equipment AP-SK 12
Binding unit and channel of AP-SK 12
NaN/undefined
Efficient cutting unit guarantees a continuous feeding and troublefree operation
Maximum ease of operation at the touch of a button
High level of automation and remarkable throughput performance
Patented cylinder and hydraulics system ensure efficient energy use and low hydraulic oil consumption
Bale length is adjustable
Multiple binding with wire or plastic strapping tape
Automatic, pressure-controlled channel regulation on three sides
Additional equipment available - f.ex.. functional tipping device
High durability and reliability based on our Austropressen quality standards
- ModelleAP-SK 12
- Press load120 kN
- Specific press load40 N/cm²
- Driver power4 kW
- Moudling cycle50 sec
- Theoretical throughput15 m³/h
- Filling hatch (LxB)600x540 mm
- Filling height1260 mm
- Bale format (LxB)600x500 mm
- Bale length600- 1200 mm
- Bale weight100- 120 kg
- Dimensions (LxBxH)3900x1200x1600 mm
- Weight1950 kg
All models and full technical data:
Optimal solution for industry and warehouses for compaction of cardboard and plastic film.
